Koyo Toyota Wheel Ball Bearings DAC3871W-3CS62

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

The Brief Description of Wheel Hub Bearings:

The first generation wheel bearing is a double row angular contact bearing components.

The second generation wheel bearing have an outer raceway for the bearing retainer flange , the bearing sleeve may simply be fixed with a nut on the axle. Making the car maintenance becomes easy.

The third generation wheel hub bearing units are used bearing unit and anti-lock braking system ABS compatible . Wheel hub unit designed with inner flange and outer flange, bolted flange on the drive shaft , the entire outer flange bearings mounted together

The fourth generation hub bearing unit is the CVJ and bearing made of a whole, to solve the prior art because the hub and the constant velocity joint integrated structure makes wheel size increases caused by increased weight disadvantage . Features are: no need to adjust the bearing assembly clearance , bearing assembly process more rational, lighter volume decreases, disposable after use almost permanently fitted grease , reduced the overall cost of production, more conducive to the massive popularity.

Features of wheel bearing automobile :

1- Low-noise, high-speed, suitable for the motor bearings and automotive bearings.

The suitable lubricant in accordance with the using environments of the bearings or the customer's requirements .

2- Appropriate radial clearance in accordance with the using environments of the bearings or the customer's requirements .

3- All products are made from high quality steel and have the characteristics of wear-resistant and strong high -loading capacity.

4- Auto Bearing is widely used in many applications, but the most common application is used in cars. All parts have been calculated by computers to avoid unnecessary weight to our auto bearing. HHYG also accept custom orders. Our team composed of professionally trained engineers will help our clients to make their designs come true!

Wheel Hub Bearings DAC3871W-3CS62 Details：

Name	DAC3871W-3CS62
Discription	387139*39 mm,0.62 Kg
Material	Chrome steel
Delivery	2-3 days
Price	EXW price (factory wholesale price)
Service	24 hours online
Appication	All kinds of wheel hub bearings: 1. The Germany's automobile brands; 2. The Italian automobile brands; 3. The French automobile brands; 4. The British automobile brands; 5. The American automobile brands.
Specialty	DAC Hub Bearing: 1) Very durable 2) High speed running 3) High quality 4) 2 years warranty 5) Good & competitive price

Wheel Hub bearings drawing and size chart:

Bearing No.				Dimensions(mm)				Weight
Model		Japan	Germany	d	D	B	C	kg
DAC255200206			617546A	25	52	20.6	20.6	0.19
DAC25520037	546467		445539AA	25	52	37	37	0.31
DAC27600050		513071(BCA)	IR8653(IRB)	27	60	50	50	0.56
DAC285842		DAC2858W	28BW03A	28	58	42	42	0.47
DAC28610042		DAC286142AW		28	61	42	42	0.56
DAC30600037		DAC3060372RS		30	60	37	37	0.42
DAC30600337	529891AB	DAC3060W	BA2B 633313C	30	60.03	37	37	0.45
DAC30600337	545312	DAC3060W	418780	30	60.03	37	37	0.45
DAC30640042		DAC3064W2RKBCS28	34BWD03ACA78	30	64	42	42	0.49
DAC30630342		DAC3063W-1		30	63.03	42	42	0.54
DAC30650021	522372		BB1B 630374/C4	30	65	21	21	0.27
DAC30650021	543909		614593	30	65	21	21	0.27
DAC34620037	531910		309724	34	62	37	37	0.41
DAC34620037	561447		BAHB 311316B	34	62	37	37	0.41
DAC34640034		DAC3464D		34	64	34	34	0.43
DAC34640037	532066DE	DAC3464G1	309726DA	34	64	37	37	0.48
DAC34640037	540466B	DAC3464G1	309726DA	34	64	37	37	0.48
DAC34660037	580400CA		559529	34	66	37	37	0.5
DAC34660037	580400CA		636114A	34	66	37	37	0.5
DAC34680037		DAC3468DW		34	68	37	37	0.55
DAC34680042		DAC34682RS		34	68	42	42	0.64
DAC35640037		DAC3564A-1		35	64	37	37	0.41
DAC35650035	546238A	DAC3565WCS30	BT2B 445620B	35	65	35	35	0.4
DAC35650035	546238A	DAC3565WCS30	443952	35	65	35	35	0.4
DAC35660032			445980A	35	66	32	32	0.42
DAC35660033			BAHB 633676	35	66	33	33	0.43
DAC36720434				36	72.04	34	34	0.58
DAC37720437	633028	562398		37	72.04	37	37	0.59
DAC37720037	633541B	562398A		37	72	37	37	0.59
DAC37740045	309946AC			37	74	45	45
DAC38710039	510062		30BWD22	38	71	39	39	0.62
DAC38720236/33			DAC3872W-3	38	72.02	36	33	0.56
DAC39680037	311315DB 309692	540733 528810		39	68	37	37	0.48

Our Auto Wheel DAC series Hub Bearing DAC3871W-3CS62 Application :

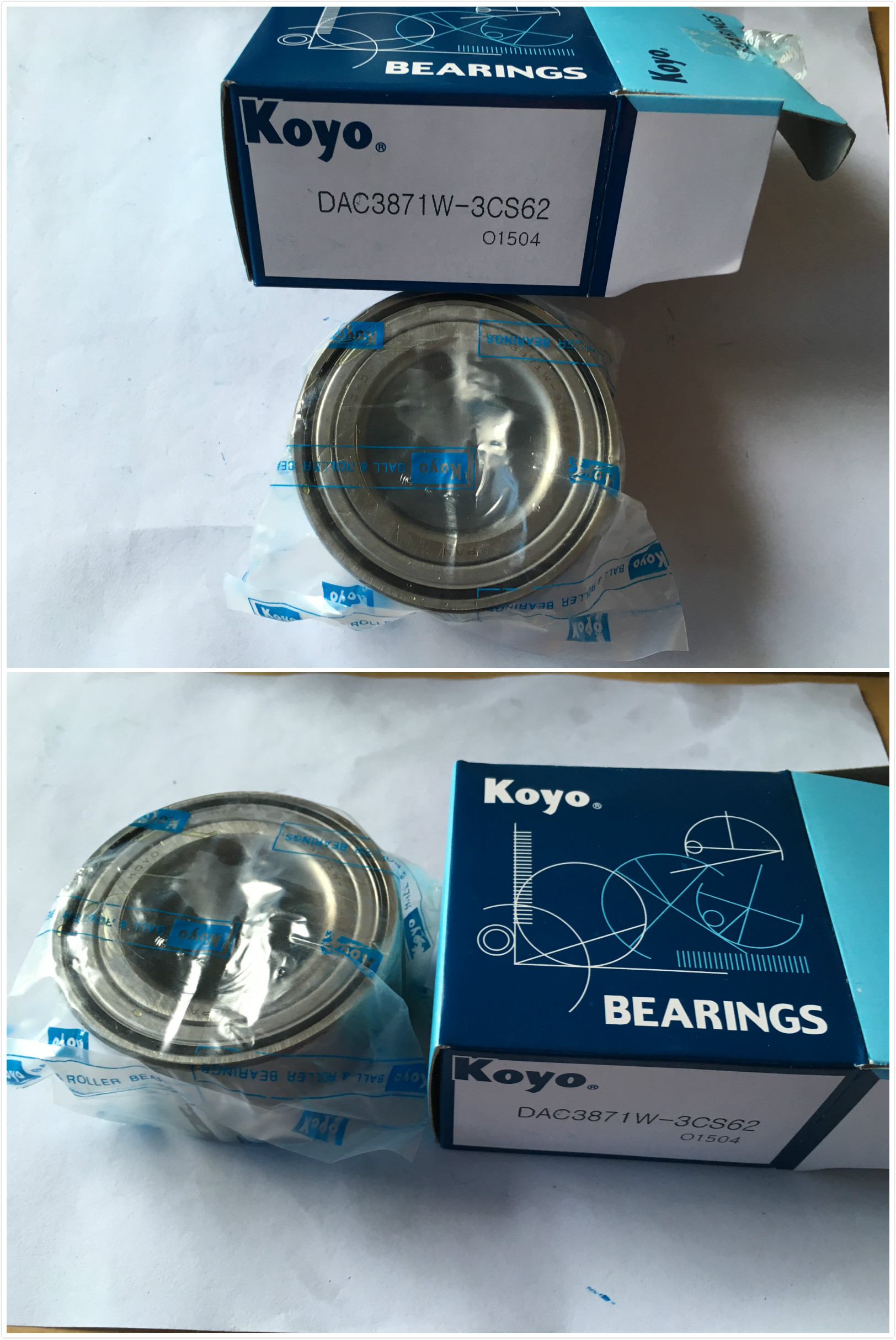

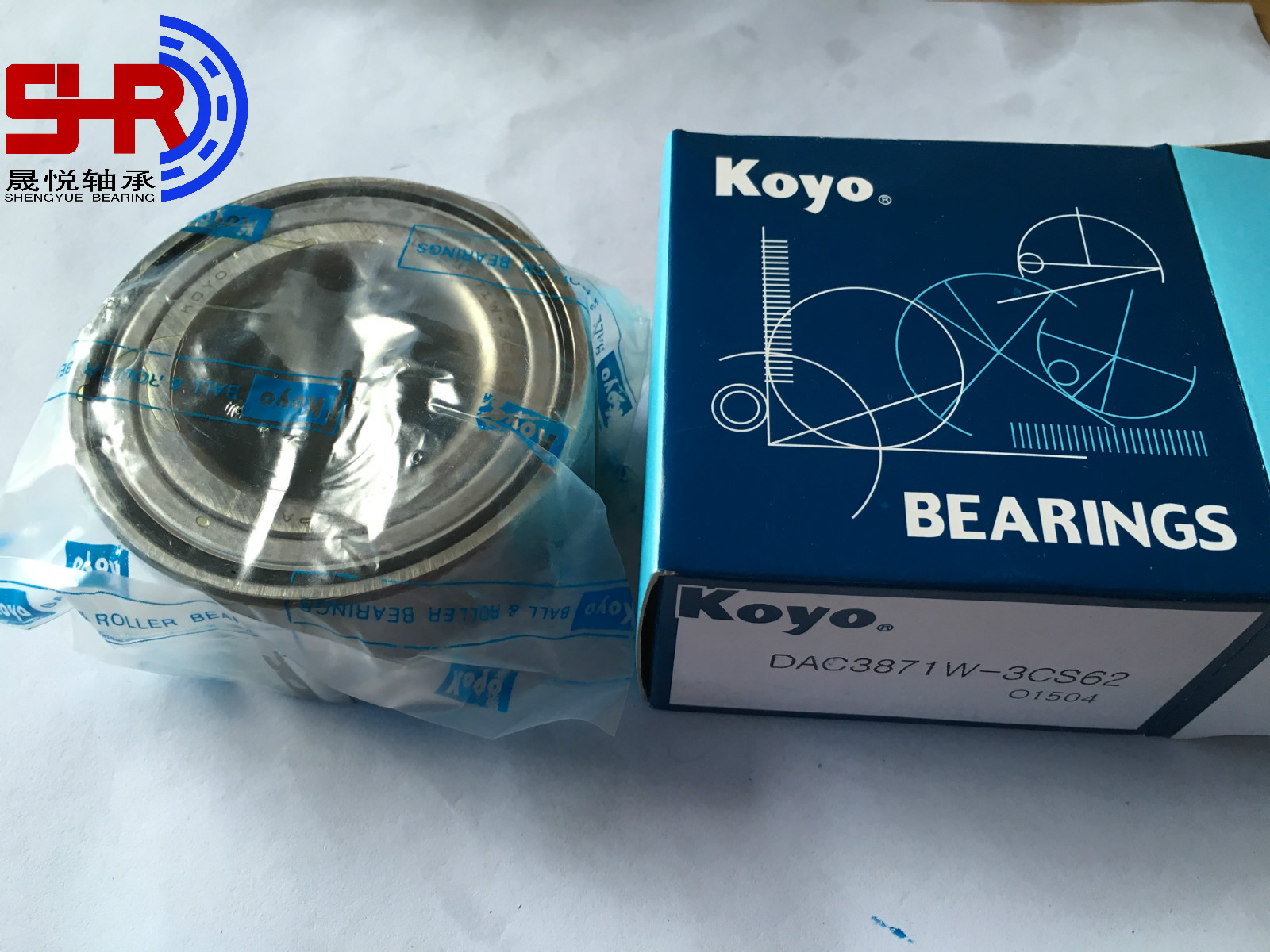

DAC Hub Bearing DAC series DAC3871W-3CS62 Pictures:

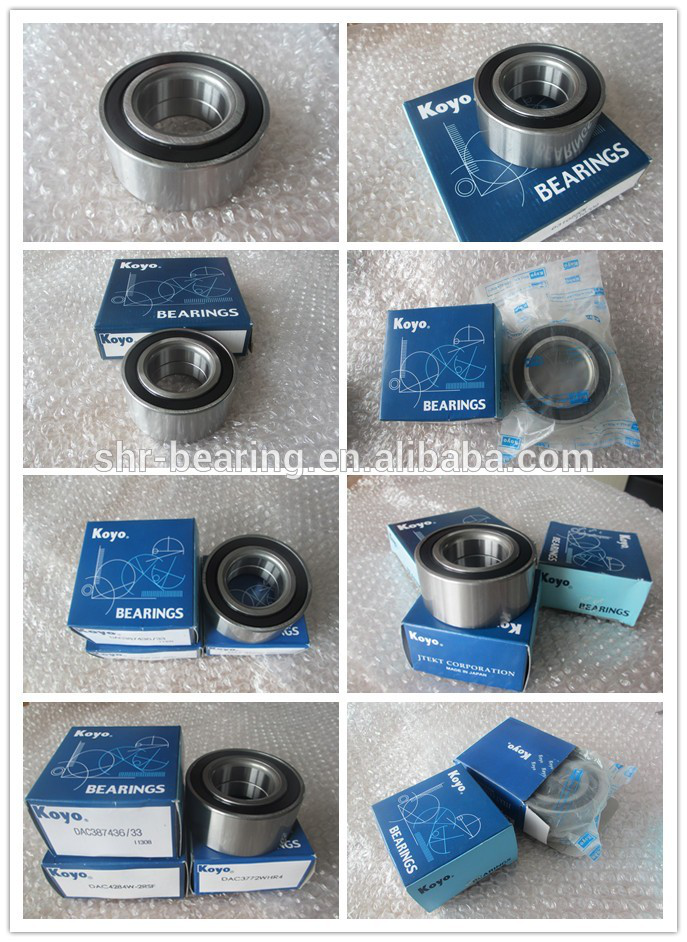

KOYO DAC series other model number bearings pictures:
