SYBR LV20/8-2RS V Groove Sealed Track Roller Bearings
Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
Description
Technical
Application
Pictures
Bearing V groove track roller bearing concept:
V guide roller bearing is W type roller orientation system of the main parts in, widely used in industrial robot, cutting equipment, mobile guide rail, production lines, etc.
For the two outer wheel had 90 degrees of V W shaped outside surface. Can be used in the lateral side or with 90 degrees in V type or the V type guide rail, also can use side in fit with cylindrical guide adaptation.
The wheel had double row angular contact ball bearing internal structure design and thickness of the outer lane, make the bearing capacity of the roller higher.
LV Series Track Roller Bearings Drawing and Details:
|
Items |
Double row V groove track roller bearing LV20/8 2RS |
|
Brand Name |
SYBR, according to your requirement |
|
Dimension |
8X30X14mm |
|
Clearance |
C2 C0 C3 C4 C5 |
|
Tolerance |
ABEC1(P0) ABEC3(P6) ABEC5(P5) ABEC7(P4) ABEC9(P2) |
|
Vibration |
Z1V1 Z2V2 Z3V3 Z4V4 |
|
Material |
carbon steel, chrome steel (GCr15),stainless steel (440,304), plastic, ceramic |
LV Series V Groove Track Roller Bearings List:
|
Wheels No .
|
Φdw
mm |
Bore mm |
O.D. mm |
Width mm |
Width mm |
A
|
Angle
|
Weight |
|
Φdw
|
D
|
D
|
B
|
C
|
A
|
α
|
G
|
|
|
LV 20/7
|
10
|
7
|
22
|
11
|
11
|
14.5
|
120
|
17
|
|
LV 20/8
|
10
|
8
|
30
|
14
|
14
|
18.1
|
120
|
49
|
|
LV20/10
|
10
|
10
|
30
|
14
|
14
|
18.1
|
120
|
48
|
|
LV 202-38
|
10
|
15
|
38
|
17
|
17
|
22.25
|
120
|
87
|
|
LV 202-40
|
10
|
15
|
40
|
18
|
18
|
22
|
120
|
110
|
|
LV 201
|
20
|
12
|
41
|
20
|
20
|
28
|
120
|
130
|
|
LV 201-14.2RS
|
14
|
12
|
39.9
|
20.1
|
18
|
24
|
100
|
107
|
|
LV 202-41
|
20
|
15
|
41
|
20
|
20
|
28
|
120
|
116
|
|
LV 203
|
20
|
17
|
58
|
25
|
25
|
35
|
120
|
325
|
|
LV 204-57
|
20
|
20
|
57
|
22
|
22
|
34.5
|
120
|
290
|
|
LV 204-58
|
30
|
20
|
58
|
25
|
25
|
41
|
120
|
310
|

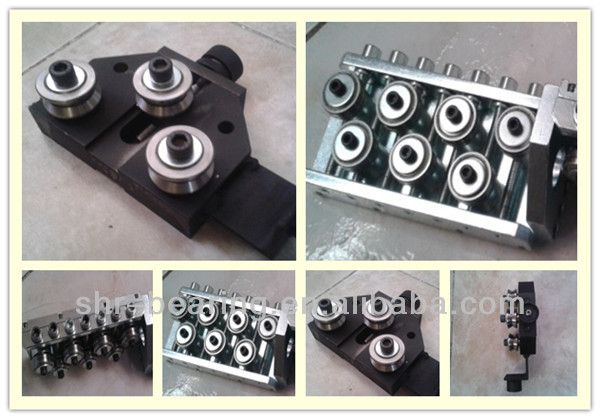

V Groove Track Roller Bearings Application:
Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.
Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.

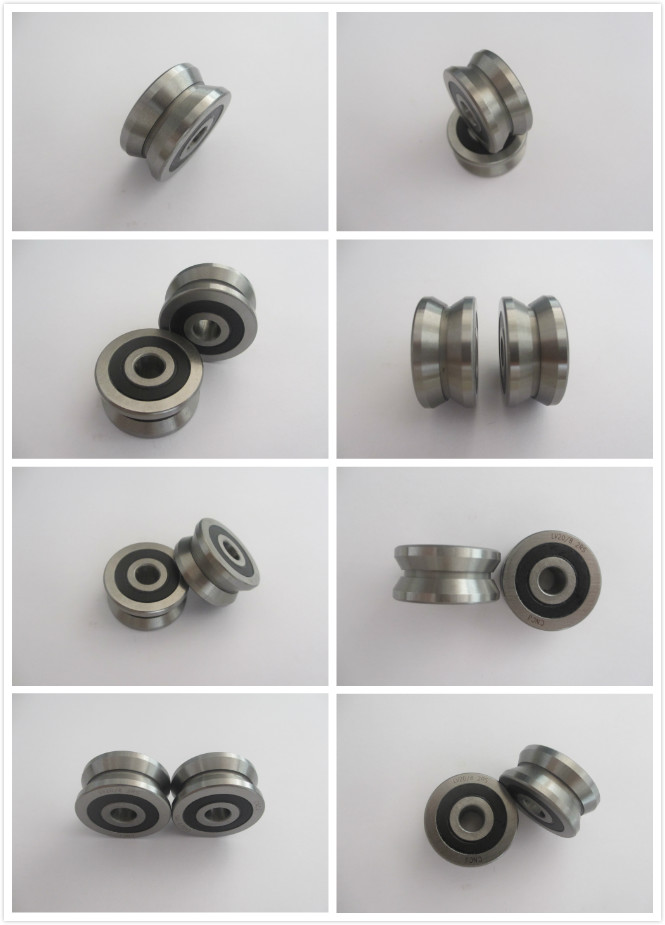

LV Series V Groove Track Roller Bearings Pictures:
