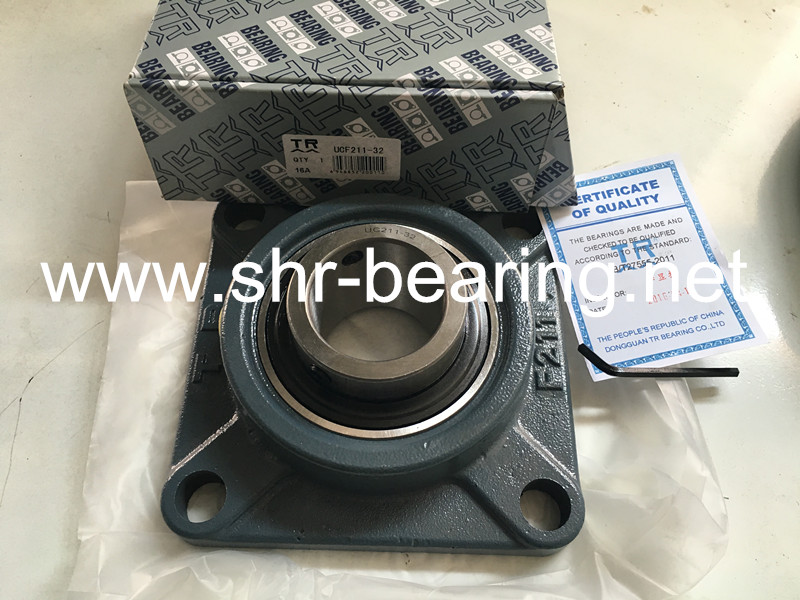

TR UCF211 pillow block bearings take up bearing

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

Detail information of the pillow block bearings

Pillow blocks are usually referred to the housings which have a bearing fitted into them and thus the user need not purchase the bearings separately. Pillow blocks are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.

Different types of bearing housings
aligning. This type can be used as free side bearings for long shafts because they are capable of accommodating shaft expansion or contraction due to temperature differences. Also suitable where there is adjustment of the axial direction is required.

5)Light duty types SAFD, SBFD, SAFW, SBFW, SALF, and SBLF.

1)Pillow blocks – these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.
These mounted bearings are used when support for a rotating shaft axis is required. Their design enables them to support the shaft in operations where the mounting surface is parallel to the shaft axis.

2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.
The flange type bearing housing comes in various shapes and styles such as square, round, and rhombus flange types.

3)Take-up units type - UCT, HCT, and UKT.
These bearing housings have an inner surface which is concave sphered hence the bearing used has a convex sphered outer surface. They are designed to permit moderate initial misplacement. Widely used in conveyor chains and conveyor belts. A sliding slot at the side of the housing facilitates the free movement of the unit.

4)Cartridge type – UCC, HCC, and UKC.
This type of bearing housing has a cylindrical outer perimeter hence the bearing outer bore is spherical. The entire unit allows free movement in the axial direction and is self-

Application of the pillow block bearings

1.Economical housed bearing solution

2.Light and heavy industrial use Pillow Block Bearing
3.Agricultural and Automotive Pillow Block Bearing
4.Conveyor and Fan assemblies Pillow Block Bearing
5.Fabricated machine assembly Pillow Block Bearing
6.Great value quality parts dispatched the same day

Pillow block bearings Technical Parameters

Bearing	UCF Pillow block bearings
Brand Name	TR
Bore Size	1-100(mm)
Outside Diameter	2-150(mm)
width	1-50(mm)
Material	Ring Material Chrome Steel ,Carbon steel,Stainless steel
Clearance	C0,C2,C3,C4,C5
Vibration	Zv1,Zv2 and Zv3
Precision Rating	P0,P6,P5
Greese	As you requirement, such as SRL ,PS2, Alvania R12 and so on
Number of Row	Single Row
Guarantee	1 year
Application	Home appliances, low noise and high speed electric motors,
Application	automotivecomponents, pumps, machinery.
Certifications	ISO 9001:2008, SASO,CE
Package	Single box or according to buyers requirement .
Place of Origin	China (Mainland)
MOQ	1 PCS
Payment Term	T/T or L/C or West Union

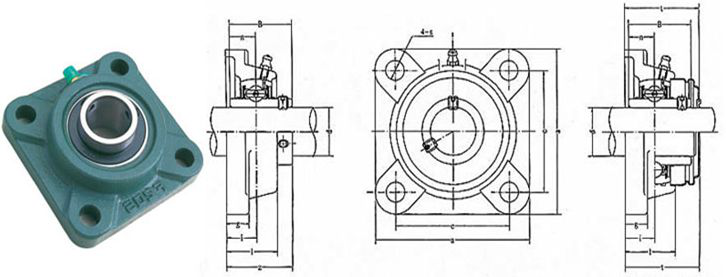

Unit No.	Dimensions mm											Bolt Sizemm	Bearing No.	Housing No.	Weight (kg)
Unit No.	d	a	e	i	g	I	s	z	t	B	n	Bolt Sizemm	Bearing No.	Housing No.	Weight (kg)
UCF201	12	86	64	15	12	25.5	12	33.3	37.5	31	12.7	M10	UC201	F204	0.6
UCF202	15	86	64	15	12	25.5	12	33.3	37.5	31	12.7	M10	UC202	F204	0.59
UCF203	17	86	64	15	12	25.5	12	33.3	37.5	31	12.7	M10	UC203	F204	0.58
UCF204	20	86	64	15	12	25.5	12	33.3	37.5	34.1	14.3	M10	UC204	F204	0.56
UCF205	25	95	70	16	14	27	12	35.8	40	34.1	14.3	M10	UC205	F205	0.8
UCF206	30	108	83	18	14	31	12	40.2	44.5	38.1	15.9	M10	UC206	F206	1.12
UCF207	35	117	92	19	16	34	14	44.4	48.5	42.9	17.5	M12	UC207	F207	1.46
UCF208	40	130	102	21	16	36	16	51.2	55.5	49.2	19	M14	UC208	F208	1.84
UCF209	45	137	105	22	18	38	16	52.2	56.5	49.2	19	M14	UC209	F209	2.15
UCF210	50	143	111	22	18	40	16	54.6	59.5	51.6	19	M16	UC210	F210	2.42
UCF211	55	162	130	25	20	43	19	58.4	63	55.6	22.2	M16	UC211	F211	3.31
UCF212	60	175	143	29	20	48	19	68.7	73.5	65.1	25.4	M16	UC212	F212	4.28
UCF213	65	187	149	30	22	50	19	69.7	74.5	65.1	25.4	M16	UC213	F213	4.99
UCF214	70	193	152	31	22	54	19	75.4	81.5	74.6	30.2	M16	UC214	F214	5.85
UCF215	75	200	159	34	22	56	19	78.5	83.5	77.8	33.3	M16	UC215	F215	6.91
UCF216	80	208	165	34	22	58	23	83.3	88.5	82.6	33.3	M20	UC216	F216	7.5
UCF217	85	220	175	36	24	63	23	87.6	92.6	85.7	34.1	M20	UC217	F217	9.66
UCF218	90	235	187	40	24	68	23	96.3	101.5	96	39.7	M20	UC218	F218	12.06

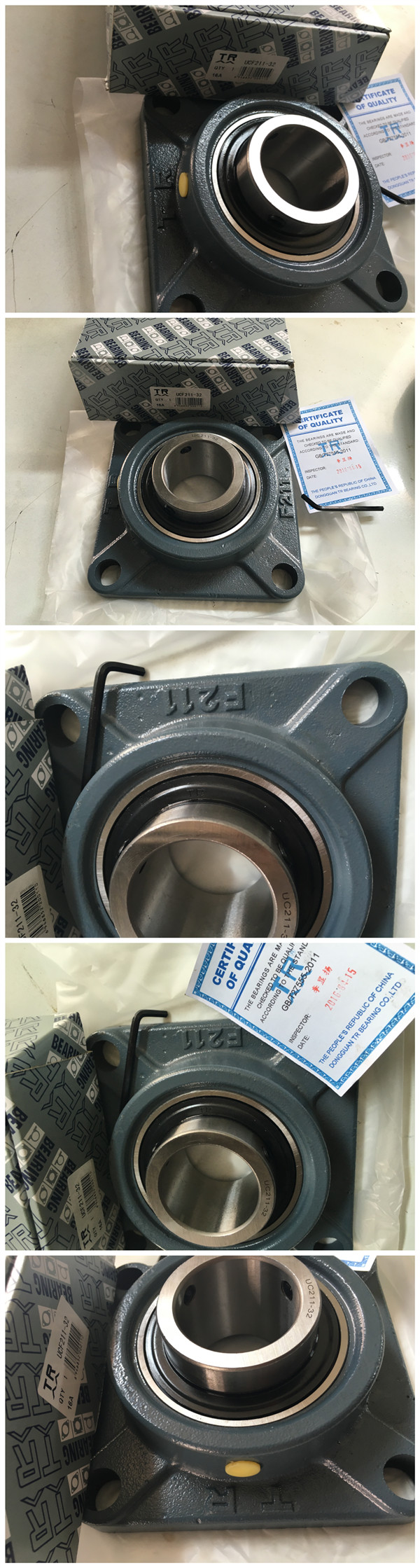

Pictures of pillow block bearings

Package box

Our advantage

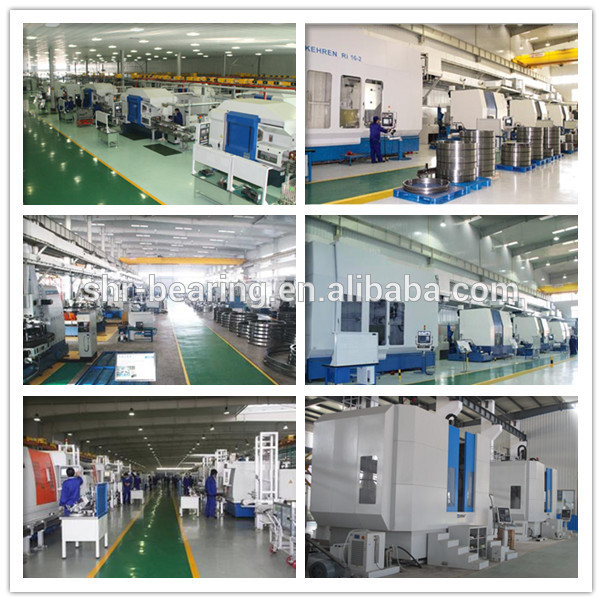

Our company
