SYBR DAC27520045 wheel bearings pretoria wanted-Choose Auto Wheel Ball Bearings Manufacturer

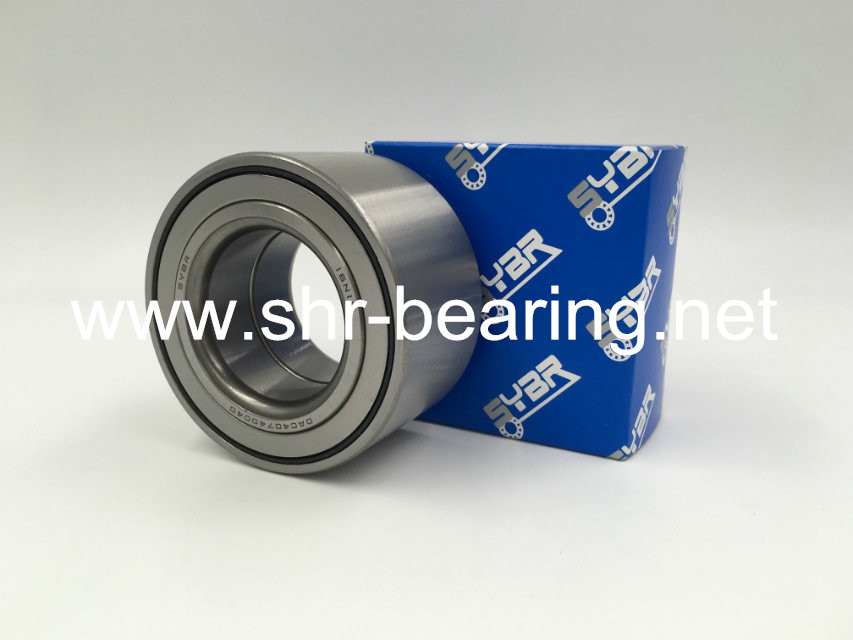

SYBR DAC27520045 wheel bearings pretoria

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

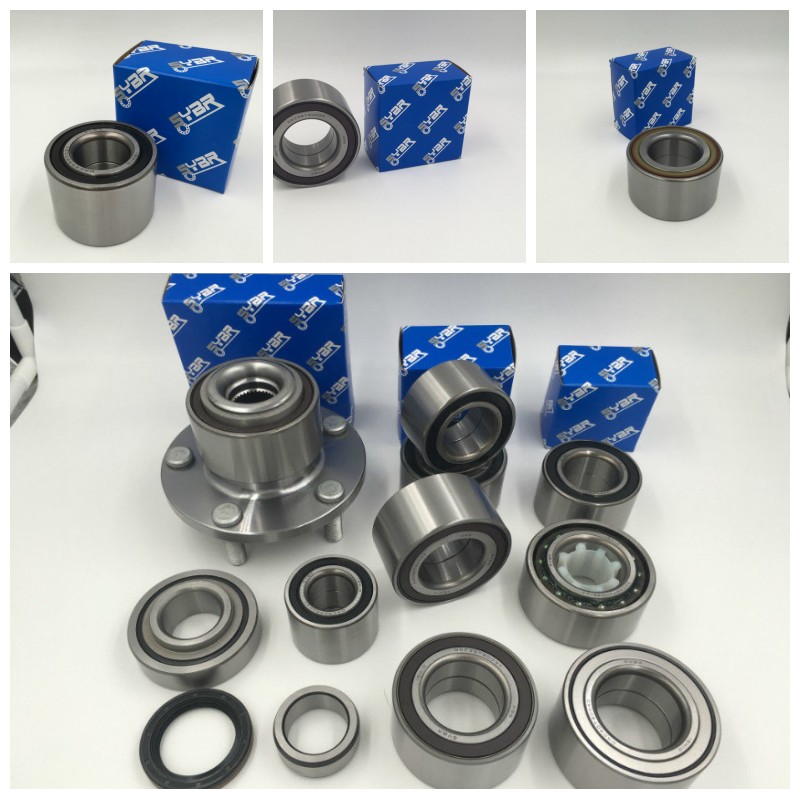

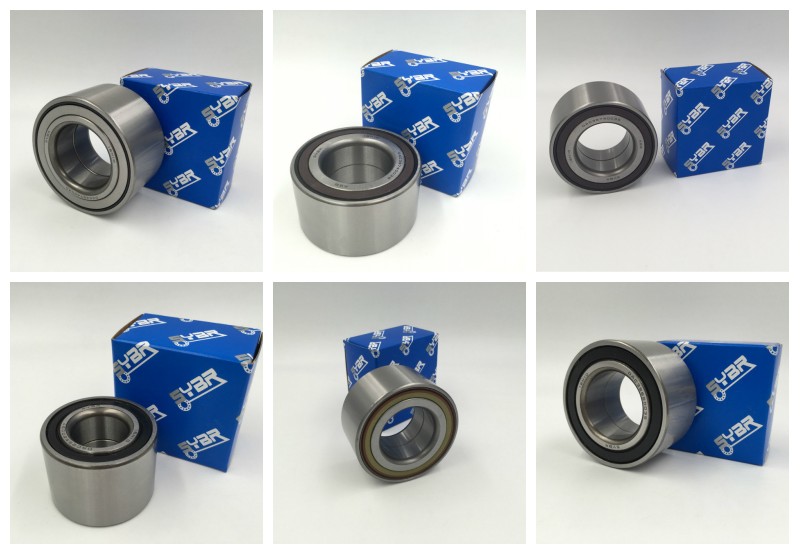

Pictures

The automotive wheel bearings are double-row angular contact ball bearings incorporating an integral outer ring and two separable inner rings and double-row tapered roller bearings with back-to-back duplex outer rings,these bearings are available either with seals or without seals.SYBR can provide completed auto wheel bearing model types with 11 years experience.

Advantages:

◆No need for pre-load adjustment at assembly.

◆compactness and high performance of wheel axles

◆no need for grease replenishment at assembly

◆high productivity,large load rating

◆Appropriate interneal axial clearance,superior sealing

Description of wheel hub bearings

Wheel hub bearing's main function is to provide accurate guide for the rotation of the wheel hub, it carry axial load, and bear radial load, is a very important component.Wheel hub bearing unit is in the standard angular contact ball bearings and tapered roller bearings, on the basis of it will be two sets of bearing as a whole, the advantages are the assembly performance is good, can omit clearance adjustment, light weight, tight structure, and load capacity is big, can first fill grease when sealed bearing, omit the external wheel hub seal and no maintenance etc, and has been widely used in cars, in a truck also has a tendency to gradually expand the application.

Product name	wheel bearing
OD(Outer diameter) :	20-100mm
ID(Inner diameter):	1-50mm
B(Thickness) :	5-100mm
Net Weight :	Email us, get more detailed - Net Weight parameters
Material :	Bearing steel
Dynamic Load Rating :	Used when calculating dry sliding bearings which are to be dynamically loaded
Static Load Rating :	Defined as the maximum load which one bearing composite bushing
Max Speed :	Determined by criteria that include the form stability of the cage and other
Max Speed :	limiting factors
Clearance :	Defined as the total distance through which one bearing ring can be moved
Clearance :	relative to the other in the radial direction
Number of Rows :	According to specific product, we can custom-made for you

Bearings	d	D	B	N/W(kg)
DAC255200206	25	52	20.6	0.19
DAC25520037	25	52	37	0.33
DAC25520042	25	52	42	0.36
DAC25560032	25	56	32	0.35
DAC27600050	27	60	50	0.42
DAC28580042	28	58	42	0.41
DAC28610042	28	61	42	0.51
DAC30550026	30	55	26	0.32
DAC30600037	30	60	37	0.46
DAC30600338	30	60.03	37	0.41
DAC30600342	30	63.03	42	0.56
DAC30630042	30	63	42	0.57
DAC30640042	30	64	42	0.58
DAC30650021	30	65	21	0.27
DAC30680045	30	68	45	0.72
DAC32720045	32	72	45	0.81
DAC32730054	32	73	54	0.98
DAC34620037	34	62	37	0.42
DAC34640034	34	64	34	0.43
DAC34640037	34	64	37	0.5
DAC34640037A	34	64	37	0.5
DAC34660037	34	66	37	0.52
DAC34680037	34	68	37	0.55
DAC34680037A	34	68	37	0.55

Our advantage

Customers with us
