SYBR Steel cage roulement thrust ball bearing 51206 gearbox thrust bearing

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

SYBR Steel cage roulement thrust ball bearing 51206 gearbox thrust bearing

Thrust ball bearing is separated type bearings, according to its structure is divided into one-way thrust ball and two-way thrust ball bearings . Bearing a single row thrust ball bearings to the heart, which has at the same time to bear a greater bearing axial load and radial load capacity .The thrust force ball bearing mainly applies to profession and so on automobile, engine bed . Our main products include deep groove ball bearings, thrust ball bearings, wheel bearings, clutch bearings, spherical bearing etc.

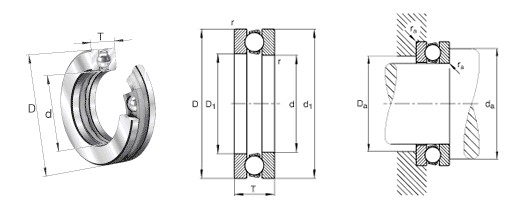

thrust ball bearing.jpg

Commodity name	Thrust Ball Bearing
Bearing model	51206 bearing
Bearing specification	305216 mm
Weight /KG	0.15 KG
Greese/Oil	As you requirement ,such as SRL,PS2,Alvania R12 and so on
Bearing Series	5xxxx 2344xx
Ring Materical	Chrome Steel,Carbon steel, Stainless steel
Tolerance grade	GB/T307.1-205
ID Size	10mm-280mm
Quality standard	bearing 51206 passed ISO 9001:2008 standard
Bearing Precision	P0,P6,P5 ,P4
Bearing range	Deep groove ball bearing , tapered roller bearing , Spherical roller bearing , angular contact ball bearing, cylindrical roller bearing, self aligning ball bearing , insert bearing , linear bearing , linear guide , thrust roller bearing , thrust ball bearing , pillow block bearing, adapter sleeve bearing, OEM service offer .

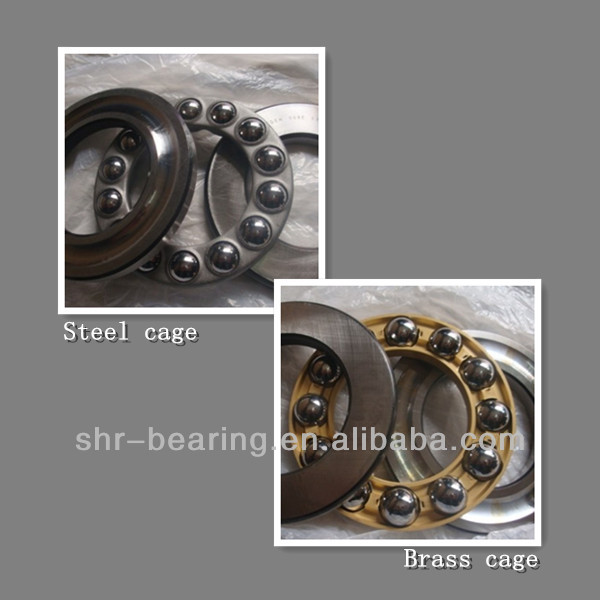

Steel pressed cage	Bending claw form or rivet form
Delivert Date	Normally ready goods and stock within 7 days
Payment Terms	A:30% T/T In Advance,70% Against Copy Of B/L B: 100% L/C At Sight C: Paypal D: Western Union
Application	Home appliances,low noise and high speed electric motors,automotive components,pumps,machinery bearing parts
Bearing Service	bearing 51206 passed OEM service offer bearing offer
Package	1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the clients' requirements.
We promise	We have complete process for the production and quality assurance to make sure our products can meet your requirement.

SYBR Steel cage roulement thrust ball bearing 51206 gearbox thrust bearing models series

d /mm	D/mm	B/mm	Models	Weight/KG
d /mm	D/mm	B/mm
10	24	9	51100	0.02
10	26	11	51200	0.03
12	26	9	51101	0.022
12	28	11	51201	0.034
15	28	9	51102	0.024
15	32	12	51202	0.046
17	30	9	51103	0.028
17	35	12	51203	0.053
20	35	10	51104	0.04
20	40	14	51204	0.082
20	47	18	51304	0.13
25	42	11	51105	0.059
25	47	15	51205	0.12
25	52	18	51305	0.18
25	60	24	51405	0.34
30	47	11	51106	0.068
30	52	16	51206	0.15
30	60	21	51306	0.27
30	70	28	51406	0.53
35	52	12	51107	0.09
35	62	18	51207	0.22

SYBR Steel cage roulement thrust ball bearing 51206 gearbox thrust bearing application

Applications

• Stationary gearboxes

• Automotive gearboxes

• Electric motors

• Vibration motors

• Vibration generators for road rollers

• Pumps and compressors

• Ventilators

• Material handling equipment

• Paper machines

• Textile machinery

• Rail vehicles

• Rolling mills

• Wind turbines

Packing :

1)Neutral package & wooden package
2)Carton package+pallet
3)Wooden package+pallet
4)As customer request

Anti-rust oil + plastic bag + paper box +carton +pallet

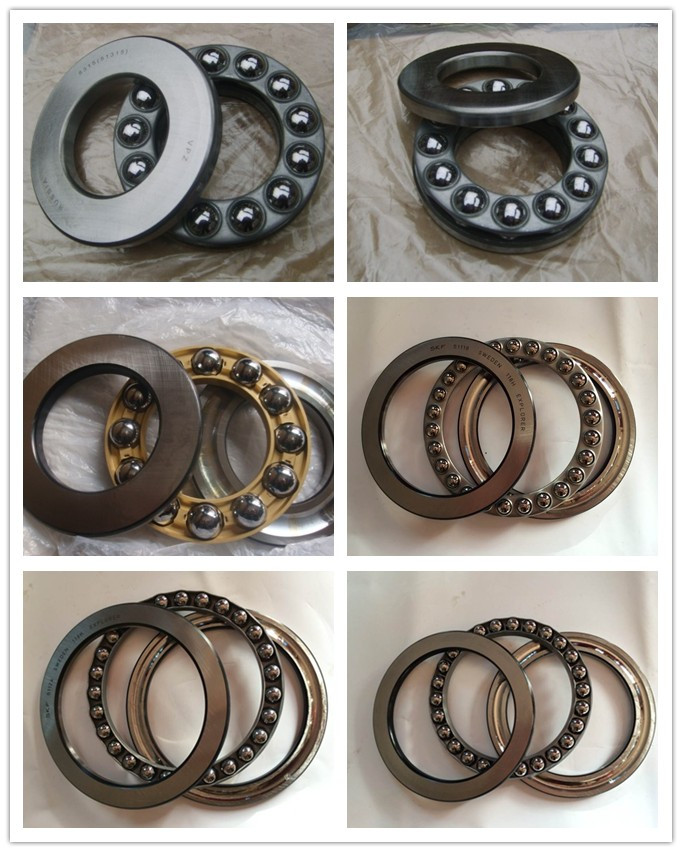

SYBR Steel cage roulement thrust ball bearing 51206 gearbox thrust bearing photos
