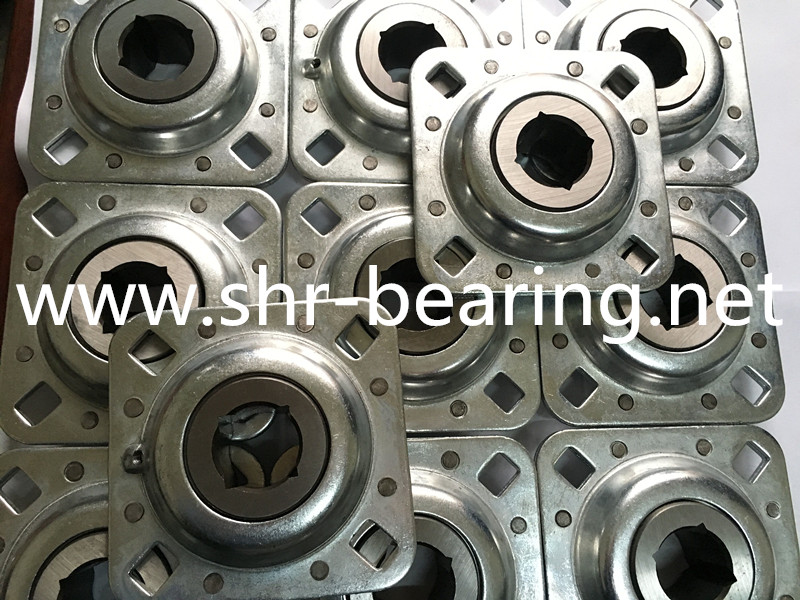

FD209-1-1/8SQ Agriculture Bearing, Flanged Disc, Relubricable, Four Bolts.
Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
Description
Technical
Application

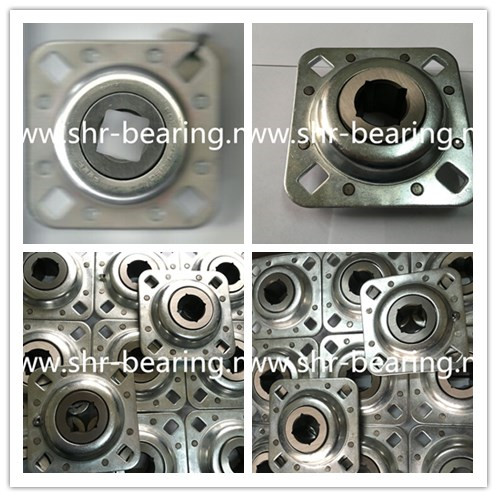

Pictures
Bearing FD209-1-1/8SQ Agriculture Bearing, Flanged Disc, Relubricable, Four Bolts, Two Triple Lip Seals, 1-1/8" Square Shaft, 4" Cylindrical OD, 1-11/16"Inner Ring Width, 5" Outer Flange width
|
Brand Name |
SYBR or OEM Bearing |
|
Part Number |
FD209-1-1/8SQ |
|
Material Type |
Steel |
|
System of Measurement |
Inch |
|
Bearing Number |
FD209-1-1/8SQ |
|
Bore Diameter |
1.125 inches |
|
Overall Width |
1.687 inches |
|
Body Outside Diameter |
4.0 inches |
|
EAN |
8865590365012 |
|
Item Weight |
3.84 pounds |
|
Number of Items |
1 |
|
UNSPSC Code |
31171504 |
Agricultural bearings are used in conveyors, lawn mowers, combines, hay balers, planters/grain drills, augers, cotton strippers, and more. They are designed to stand up to extreme conditions and loads. There are many different designs available. Their basic components are inner and outer rings, balls, and retainers. The inner race can be round, square, or hex, and the outer race can be either cylindrical or spherical. Most agricultural bearings are sealed on both sides with single, double, or triple lip.
|
Brand: |
SYBR or OEM or PEER |
|
Model No.: |
FD209-1-1/8SQ |
|
Type: |
Disk Harrow Unit Bearing |
|
Size: |

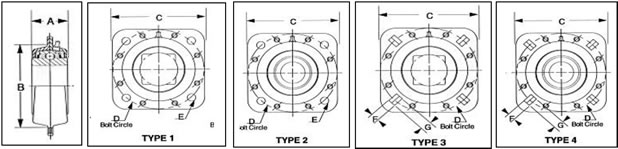

1.125"x5"x1.687",Full Ditails Please see the below drawing |
|
Quality |
ISO9001:2008 |
|
MOQ: |
100 PCS |
|
Seal Type: |
Tri-Ply Seals |
|
Hardness: |
59-63 HRC |
|
Material: |
Chrome steel Gcr15 |
|
Cage |
Steel |
Bearing FD209-1-1/8SQ Agriculture Bearing Product series:
|
|
|||||||||
|
UNIT No. |
TYPE |
SHAFT DIAMETER |
A |
B |
C |
D |
E |
F |
G |
|
Mini-Frame |
|||||||||
|
Opening |
|||||||||
|
ST491A |
2 |
1 3/4 RD |
1.687 |
4.000 |
5.000 |
5.000 |
0.531 |
~~ |
~~ |
|
ST491B |
4 |
1 1/2 RD |
1.687 |
4.000 |
5.000 |
5.000 |
~~ |
0.531 |
0.687 |
|
FD209-1 1/8SQ |
3 |
1 1/8 SQ |
1.687 |
4.000 |
5.000 |
5.000 |
~~ |
531 |
0.687 |
|
FD209-1 1/4SQ |
3 |
1 1/4 SQ |
1.687 |
4.000 |
5.000 |
5.000 |
~~ |
0.531 |
0.687 |
|
FD210-1 1/8SQ |
1 |
1 1/8 SQ |
1.750 |
4.000 |
5.000 |
5.000 |
0.531 |
~~ |
~~ |
|
FD211-1 1/2SQ |
3 |
1 1/2 SQ |
2.000 |
4.000 |
5.500 |
5.500 |
~~ |
0.531 |
0.687 |
|
FD211-1 3/4RD |
2 |
1 3/4 RD |
2.187 |
4.000 |
5.500 |
5.500 |
0.531 |
~~ |
~~ |
|
FD211-1 3/4HX |
~~ |
1 3/4 HX |
2.188 |
4.000 |
5.500 |
5.500 |
0.531 |
~~ |
~~ |
|
FD211-1 15/16RD |
2 |
1 15/16 RD |
2.187 |
4.000 |
5.500 |
5.500 |
0.531 |
~~ |
~~ |
|
FD211-1 15/16RDC* |
~~ |
1 15/16 RD |
2.125 |
4.000 |
5.500 |
5.500 |
0.531 |
~~ |
~~ |
|
FD211-2 3/16RD |
2 |
2 3/16RD |
2.187 |
4.000 |
5.500 |
5.500 |
0.531 |
~~ |
~~ |
|
|
* COMES WITH LOCKING CAM |
|
|
|
|
|
|
||
|
BORE = |
RD = ROUND |
SQ = SQUARE |
HX = HEX |
|
|
|
|||
